Hardware
It is important to take the time to consider the style, functionality and colour of handles and locks.
We have a range of hardware available for your windows and doors. All of our hardware can be colour matched to your aluminium joinery colour.
Digital options
All of the Yale above locks are compatible with the Yale Home App and Yale Connect Plus Hub 2
Standard Options

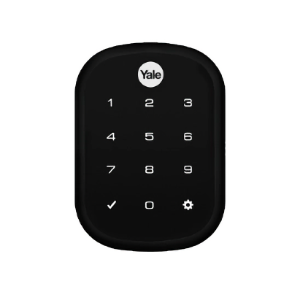

Yale Assure Lock® SL Digital Deadbolt
This sleek and modern touchscreen deadbolt allows homeowners to enjoy the convenience of 100% key free locking/unlocking. Create unique pin codes for friends and family and remove codes whenever you need to.
Features
- Touchscreen Keypad
- One Touch Locking
- 100% Key Free
- 9V Battery Port for Back-up Power
- Customise settings - Auto relock, Volume settings and Privacy mode.
- Create up to 25 user pin codes
- Lock management via the Yale Home App

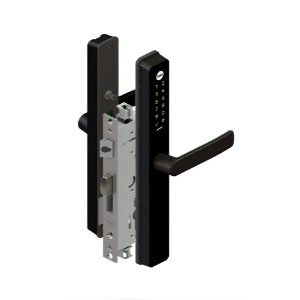

Yale Unity® Slim Smart Lock
The Unity® Slim Smart Lock has a built-in keypad for convenient key-free access at all times, and it is controllable by the Yale Home App. The Yale Home App allows you to lock and unlock your door, grant access to others, and keep track of visitor access, all via your smartphone. See the great features below.
Features
- 4 points of locking from the latch, deadbolt and two shootbolts (included)
- The handing of the lockset is adjusted by reversing the orientation of the latch bolt
- 40mm backset
- 85mm pitch
- Preset 13mm throw on deadbolt
- Suitable for 35mm to 60mm door thicknesses
- Stainless steel forend plate
- Adjustable latch projection
- Latch wear insert included
- Includes lock rods and tips
- Suits for aluminium joinery suites
- When used with the correct strike the lock generates optimum seal compression to provide improved water and air seal performance, especially for large panel doors

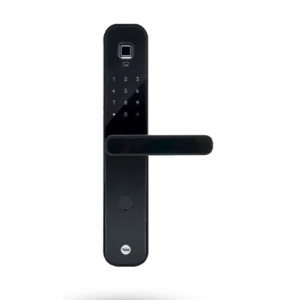

Yale 7220 Digital Mortice Lock
The Yale YDM7220 is Mortise Smart Lock, a smart and convenient solution for your home.
You can have all the various access option to enter your home either via fingerprint scan, personalized PIN code, RFID key tag or simply via your phone. See below for the great features.
Features
- Fingerprint / PIN / RFID Card access
- 6-10 digit PIN codes
- Voice guide feature
- Audible indicator
- Automatic locking
- Fake PIN scramble code
- Intrusion/tamper alarm
- Low battery notification
- Emergency mechanical key override
- Yale Home module provides Bluetooth connectivity and the ability to connect to the Yale Home App (included)
- Battery life of approximately 1 year
- Suitable for residential applications
**All of the above locks are compatible with the Yale Home App and Yale Connect Plus Hub 2
Download the Yale Home App for
- App control
- Guest access
- 24/7 activity monitoring and notifications
- Auto lock/unlock when you are nearby
- DoorSense™ technology: know when your door is open, closed or left ajar from anywhere
- Integrate with Apple HomeKit smart home ecosystem
Upgrade with the Yale Connect Plus Hub 2 for
- Manage access to your home from anywhere
- Remote locking/unlocking
- Integrate with voice assistants and smart home ecosystems, Amazon Alexa, Apple Home Kit and Google Home, for hands-free control
- Runs with Yale Window Actuator and all planned future Smart Yale products
Recommendations
- Use Duracell batteries
- For set up instructions go to Yale product support
- Additional help contact Assa Abloy helpline on 0800 456 257
Warranty
- Ten-year mechanical warranty
- Three-year electrical and electronic warranty

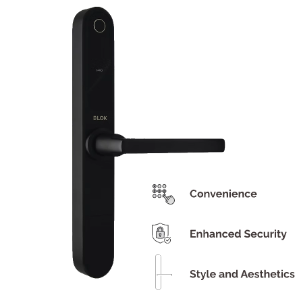

E-LOK
E-LOK provides versatile smart lock solutions for all door types, ensuring seamless integration into your home for a smarter, secure, and stylish living experience.
Design Windows can also supply from the E-LOK range – for more information about this range click here
More about the E-LOK range
Urbo
The Urbo range of door and window hardware offers clean shapes with a stylish combination of square and radiused edges. A fineness of line offers a lighter look than Miro or Icon but with no compromise on strength or performance.
Urbo architectural window fastener
Urbo window fastener
Urbo venting window fastener
Urbo espagnolette window fastener
Urbo half lever handle
Urbo sliding door flush pull
Urbo sliding door handle
Urbo bi-fold operator

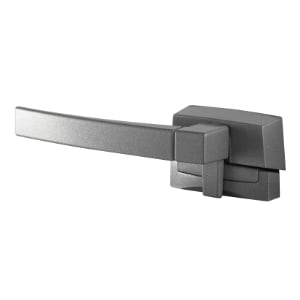

Urbo lever door lockUrbo window fastener
Closes against the window frame with no visible flap or wedge.

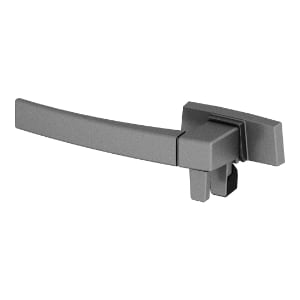

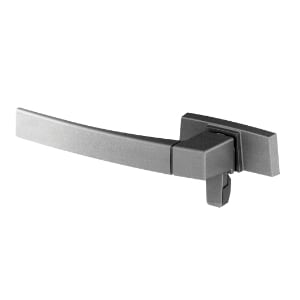

Urbo architectural window fastener
The Urbo window fastener with separately fixed wedge is suitable for APL Architectural Series.
Urbo venting window fastener
A venting option is available which allows the window to be fastened in a partially open position for passive ventilation.

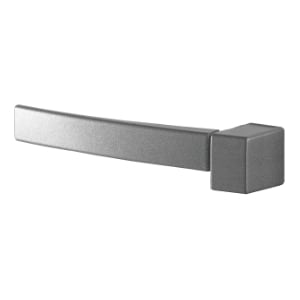

Urbo espagnolette window fastener
Single hand, two-point locking with no closing wedge. Secure venting position.

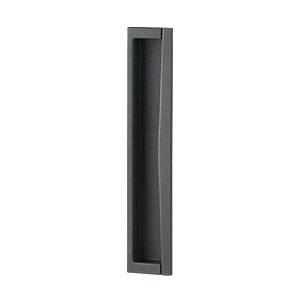

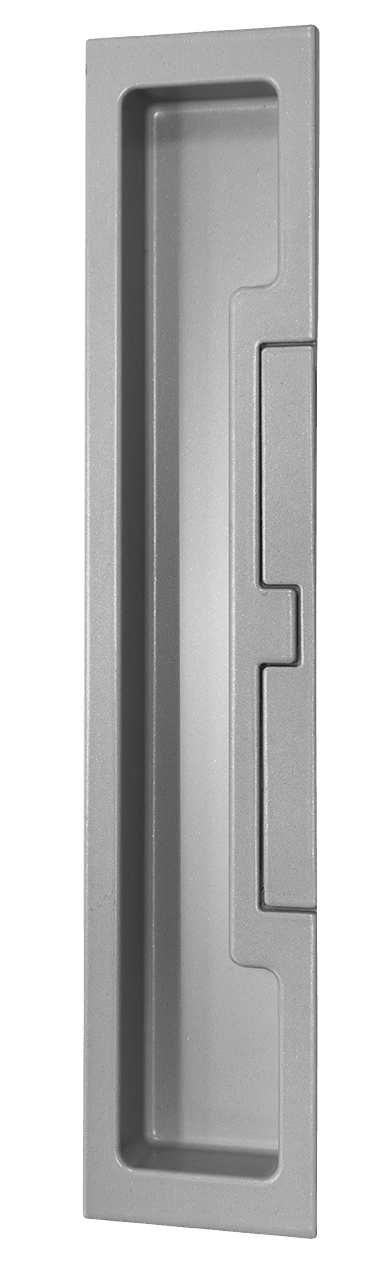

Urbo sliding door flush pull
Continuing the blend of contoured and square edges, the Urbo flush pull is ideal for lighter sliding panels where a robust hand grip is not required.

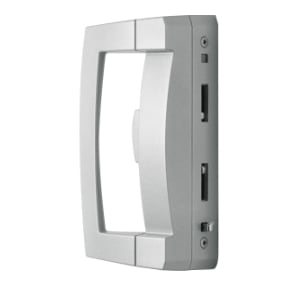

Urbo surface mount sliding door handle
An all in one handle and lock for sliding doors and windows. Snib or key installed in the body of the handle.

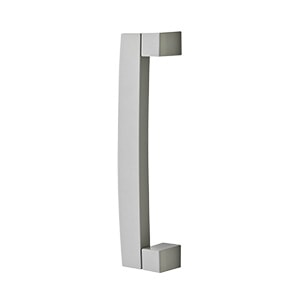

Urbo sliding door handle
Offering a comfortable grip (325mm or 255mm long) the sliding door handle has inner edges that are smoothly radiused. The lock is separately mounted.

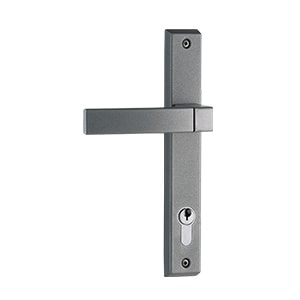

Urbo lever door lock
A compact design with fine lines and a chunky escutcheon. The ideal finishing touch for hinged doors. Snib or key operation is available for secure four-point locking.
Urbo bi-fold operator
A sleek swivel lock that activates locking rods in the top and bottom of the door or window panel. Optional key-locking (separately installed) is available.

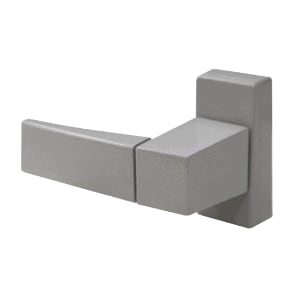

Urbo half lever handle
This small lever handle locks sliding door danels together, usually in 4-panel configerations. May be used in conjunction with a pull handle on heavier doors.
Icon
Icon is New Zealand’s first fully integrated range of stainless steel hardware for aluminium windows and doors. Icon products have an outstanding look, and when properly maintained are suitable for most environments.
The square-edge, rectangular lines provide a contemporary look across the range of window and door handles. Icon hardware is made from 316-grade stainless steel, and provides maximum resistance to rust when maintained.
The square-edge, rectangular lines provide a contemporary look across the range of window and door handles. Icon hardware is made from 316-grade stainless steel, and provides maximum resistance to rust when maintained.
Icon Window Fastener
Icon architectural window fastener
Icon lever door lock
Icon bi-fold operator
Icon sliding door flush pull
Icon sliding door handle
Escutcheon
Icon window fastener
This fastener for Residential Series awning and casement windows blends square-edged and radiused looks. Closes against the window frame with no visible flap or wedge. Available in a low profile.
Icon architectural window fastener
Suitable for APL Architectural Series. A seperate colour matching wedge is fitted to the frame or transom.
Icon escutcheon
A seperate lock for use with the Icon pull handle. Available in turn snib or key options,
Icon bi-fold operator
This swivel operator throws locking stainless steel bolts into the frame at the top and bottom of the panel. Optional key-locking (separately installed) is available.
Icon sliding door handle
Fixed to the door on both the interior and exterior with a mortice lock fixed separately. Length options - 325mm, 630mm, 930mm and 1830mm.
Icon sliding door flush pull
An alternative to a sliding door handle, this offers a more understated look. It’s ideal for lighter sliding panels. A mortice lock is fixed separately.
Icon lever door lock
A clean compact lever handle with four-point locking. A lifting movement of the handle activates locking rods at top and bottom of the door. Available in two sizes.
Elemental
Sleek and simple Elemental hardware offers an architectural look. Made from extruded aluminium, this hardware is available in Silver, Champagne, Black, Light Bronze, Medium Bronze and Dark Bronze anodised finishes.
Elemental Window Venting Fastener
Elemental Window Fastener
Elemental Espagnolette
Elemental Door Lever
Elemental Flush Pull
Elemental Pull Handle
Elemental Escutcheon
Elemental Bi-fold Handle
Elemental Bi-fold HandleElemental window fastener
A venting option of the window fastener is available which allows the window to be fastened in a partially open position for passive ventilation.
Elemental venting window fastener
A venting option of the window fastener is available which allows the window to be fastened in a partially open position for passive ventilation.
Elemental espagnolette window fastener
Single hand, two-point locking (no closing wedge). Secure venting position available.
Elemental sliding door flush pull
Ideal for lighter sliding panels. The lock is mounted separately from the pull, and is operated by a key or snib.
Elemental pull handle
Available in two standard sizes but can be made to any length by special order. The sliding door handle is separate from the lock, which is operated by a key or snib.
Elemental lever door handle
Snib or key operation is available for secure four-point locking.
Elemental escutcheon
A separate lock for use with the Elemental pull handle. Available in turn snib or key options.
Elemental bi-fold handle
A sleek swivel lock that activates locking rods in the top and bottom of the door or window panel.
Miro
The Miro range of door and window hardware offers a unified look that carries through from exterior to interior joinery. Miro shapes are contemporary and functional, and include handles for internal timber doors.
The smooth, ergonomic Miro shapes offer a great look as well as a comfortable hand grip. Secure and convenient locking features are included with four-point hinged door locking as standard.
The smooth, ergonomic Miro shapes offer a great look as well as a comfortable hand grip. Secure and convenient locking features are included with four-point hinged door locking as standard.
Miro architectural window fastener
Miro venting window fastener
Miro window fastener
Miro surface mount
Miro Sliding Door
Miro lever door lock
Micro Bi-fold handle
Miro EscutcheonMiro window fastener
Combines a sure hand grip with clean lines. Available in a low profile option.

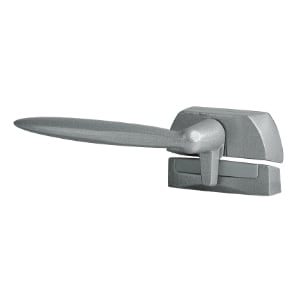

Miro architectural window fastener
Suitable for APL Architectural Series. A separate colour matching wedge is fitted to the frame or transom.
Miro venting window fastener
A venting option of the window fastener is also available which allows the window to be fastened in a partially open position for passive ventilation.

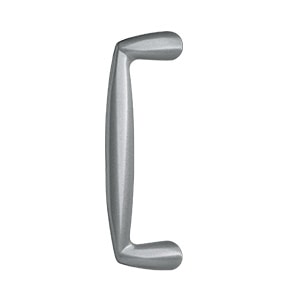

Miro sliding door handle
The small Miro sliding door handle is suited to Residential Series sliding doors. The large Miro sliding door handle is suited to use on entrance doors and Metro Series and APL Architectural Series sliding doors.

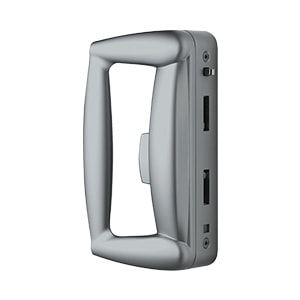

Miro surface mount handle
This all in one handle and lock for sliding doors or windows retains the Miro family likeness. There is no separately installed snib or keyway.

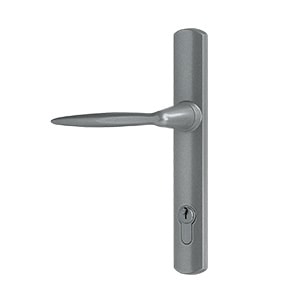

Miro lever door handle
Available in a variety of locking options, including keyed both sides or with interior snib. An upward handle movement activates four-point locking.
Miro escutcheon
A separate lock for use with the Icon pull handle. Available in turn snib or key options.

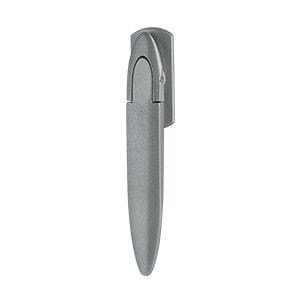

Miro bi-fold operator
This swivel lock activates locking rods in the top and bottom of the door or window panel. Key-locking is also available, mounted separately from the handle.
